Condition |
Brand New
|
Product Numbers |
Part Code: A520M S2H
EAN Number: 4719331809720
|
Stock Status |
| We have more stock arriving: 22/04/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£49.49 exc vat |
| 10 - 19 units |
£49.37 exc vat |
| 20 - 49 units |
£49.24 exc vat |
| 50 - 99 units |
£49.12 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

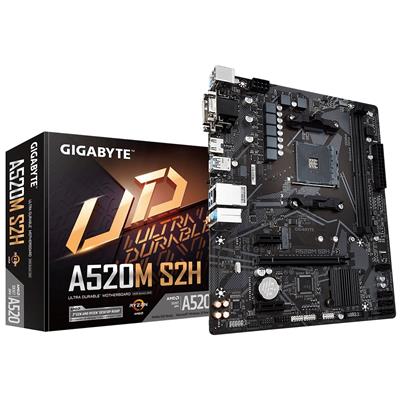

Product Title: Gigabyte A520M S2H (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB119283
Manufacturers Part Code: A520M S2H
Product Name: Gigabyte A520M S2H (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address: www.gigabyte.com
Model Number: A520M S2H
EAN: 4719331809720
UPC: 889523023594
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD A520
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR4 5000 (O.C.)
Max. Memory Support: 64GB
PCI Express 3.0 x16: 1
PCI Express 2.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1
LAN Speed: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
On-Board Audio: Realtek ALC887 codec
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back VGA Port(s): 1
Back DVI-D Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Addressable LED Strip Header‚1 x RGB LED Strip Header
Form Factor: Micro ATX
Product Width: 205mm
Product Length: 244mm
Package Width: 23.5cm
Package Length: 27cm
Package Height: 5.5cm
Gross Weight: 1.65Kg
Special Features: Supports 3rd Gen AMD Ryzen Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.‚4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs.‚Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector.‚GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.‚HDMI, DVI-D, D-sub Ports for Multiple Display.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Anti-Sulfur Resistors Design.
Package Contents: A520M S2H Motherboard‚2 x SATA Cables‚Support Disk‚IO Shield‚Manual
Keywords: Motherboard‚AM4‚A520‚DDR4‚HDMI‚USB 3.2
|
