Condition |
Brand New
|
Product Numbers |
Part Code: B550 AORUS ELITE AX V2
EAN Number: 4719331809904
|
Stock Status |
Currently 47 available in stock.
We have more stock arriving: 22/04/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£118.73 exc vat |
| 10 - 19 units |
£118.43 exc vat |
| 20 - 49 units |
£118.14 exc vat |
| 50 - 99 units |
£117.84 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

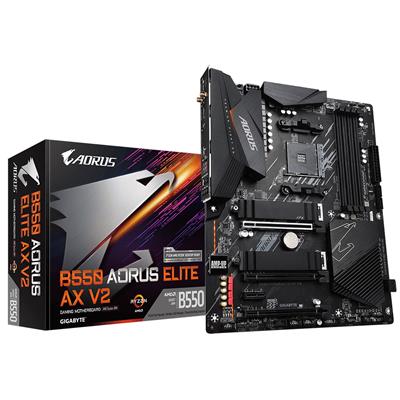

Product Title: Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)
KSN SKU Code: MB119533
Manufacturers Part Code: B550 AORUS ELITE AX V2
Product Name: Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)
Web Address: www.gigabyte.com
Model Number: B550 AORUS ELITE AX V2
EAN: 4719331809904
UPC: 889523023969
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B550
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4400 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 3
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 2
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless NIC: WiFi 6
Wireless Technology: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Bluetooth: v5.0
On-Board Audio: Realtek ALC1200 codec‚High Definition Audio‚2/4/5.1/7.1-channel‚Support for S/PDIF Out
On-Board Video: Processor with integrated graphics is required
Back USB 3.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 3
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 1
USB 3.2 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x CPU Cooler LED Strip/RGB LED Strip Header‚2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 3.78Kg
Special Features: Supports AMD 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚12+2 Phases Digital Twin Power Design with 50A DrMOS.‚Advanced Thermal Design with Enlarged Surface Heatsinks.‚Ultra-Durable PCIe 4.0 x16 Slot.‚Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards.‚Onboard Intel WiFi 6 802.11ax 2T2R and BT5 with AORUS Antenna.‚AMP-UP Audio with ALC1200 and WIMA Capacitors.‚Blazing Fast 2.5GbE LAN with Bandwidth Management.‚Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Pre-installed IO Shield for Easy and Quick Installation.
Package Contents: B550 AORUS ELITE V2 motherboard‚Support Disk‚One G Connector‚Manual‚One antenna‚Two SATA cables
Keywords: Motherboard‚AM4‚B550‚DDR4‚WiFi 6‚Bluetooth
|
