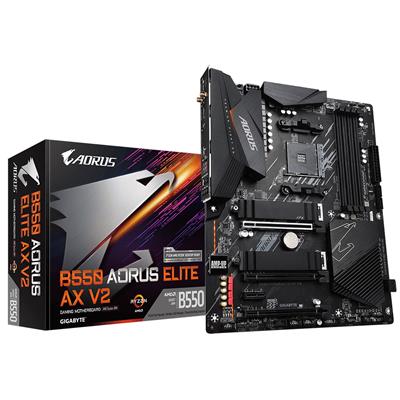

Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)
[MB119533]

£128.56 (inc VAT) / £107.13 (exc VAT)





Product Numbers
 Part Code: B550 AORUS ELITE AX V2
 EAN Number: 4719331809904
Stock Status

In stock
Currently 70 available in stock.
We have more stock arriving: 27/02/2022
Delivery Price
 Add to Cart for Instant Delivery Pricing
Quantity Price Break Discounts
 5 - 9 units   £106.86 exc vat
 10 - 19 units   £106.59 exc vat
 20 - 49 units   £106.33 exc vat
 50 - 99 units   £106.06 exc vat
 100 or more units   * Negotiable *
Discounts Are Applied During Checkout
Share Content

Bookmark and Share

Product Title: Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)

KSN SKU Code: MB119533

Manufacturers Part Code: B550 AORUS ELITE AX V2

Product Name: Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)

Web Address: www.gigabyte.com

Model Number: B550 AORUS ELITE AX V2

EAN: 4719331809904

UPC: 889523023969

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 3

PCI Express 3.0 x1: 1

S-ATA III Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless NIC: WiFi 6

Wireless Technology: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

Bluetooth: v5.0

On-Board Audio: Realtek ALC1200 codec‚High Definition Audio‚2/4/5.1/7.1-channel‚Support for S/PDIF Out

On-Board Video: AMD processor with integrated graphics is required

Back USB 3.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 3

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): 2 x SMA antenna connectors (2T2R)

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 3.2 Header(s) Gen 1: 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x CPU Cooler LED Strip/RGB LED Strip Header‚2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 8cm

Gross Weight: 3.78Kg

Special Features: Supports AMD 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚12+2 Phases Digital Twin Power Design with 50A DrMOS.‚Advanced Thermal Design with Enlarged Surface Heatsinks.‚Ultra-Durable PCIe 4.0 x16 Slot.‚Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards.‚Onboard Intel WiFi 6 802.11ax 2T2R and BT5 with AORUS Antenna.‚AMP-UP Audio with ALC1200 and WIMA Capacitors.‚Blazing Fast 2.5GbE LAN with Bandwidth Management.‚Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Pre-installed IO Shield for Easy and Quick Installation.

Package Contents: B550 AORUS ELITE V2 motherboard‚Support Disk‚One G Connector‚Manual‚One antenna‚Two SATA cables

Keywords: Motherboard‚AM4‚B550‚DDR4‚WiFi 6‚Bluetooth

We have more stock arriving: Sunday 27 February, 2022
