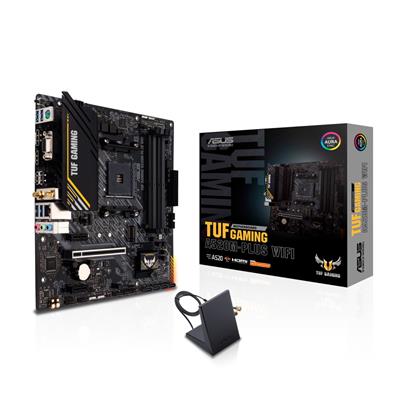

ASUS TUF GAMING A520M-PLUS WIFI (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
[MB120867]

£104.34 (inc VAT) / £86.95 (exc VAT)





Condition
 Brand New
Product Numbers
 Part Code: 90MB17F0-M0EAY0
 EAN Number: 4711081154273
Stock Status

In stock
Currently 13 available in stock.
We have more stock arriving:
Delivery Price
 Add to Cart for Instant Delivery Pricing
Quantity Price Break Discounts
 5 - 9 units   £86.73 exc vat
 10 - 19 units   £86.52 exc vat
 20 - 49 units   £86.3 exc vat
 50 - 99 units   £86.08 exc vat
 100 or more units   * Negotiable *
Discounts Are Applied During Checkout
Share Content

Bookmark and Share

Product Title: ASUS TUF GAMING A520M-PLUS WIFI (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

KSN SKU Code: MB120867

Manufacturers Part Code: 90MB17F0-M0EAY0

Product Name: ASUS TUF GAMING A520M-PLUS WIFI (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Web Address: www.asus.com

Model Number: TUF GAMING A520M-PLUS WIFI

EAN: 4711081154273

UPC: 195553154277

Package Type: Retail

Warranty: 3 Years

BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS

Chipset: A520

CPU Interface: Socket AM4

CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-A520M-PLUS-WIFI/HelpDesk_CPU/

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

On-Board LAN: 1 x Realtek 1Gb Ethernet

Wireless NIC: Realtek Wi-Fi 8821CE

Wireless Technology: 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO‚Supports dual frequency band 2.4/5GHz‚Supports channel bandwidth: HT20/HT40/HT80

Bluetooth: v5.0

On-Board Audio: Realtek ALC 887/897 7.1 Surround Sound High-Definition Audio CODEC

On-Board Video: AMD processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x ASUS Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 2 x AURA Addressable Gen 2 header‚2 x AURA RGB headers

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27.5cm

Package Length: 28cm

Package Height: 7cm

Gross Weight: 1.30Kg

Special Features: AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.‚Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+.‚Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology.‚Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚IO Shield‚1 x M.2 SSD screw package‚1 x ASUS Wi-Fi moving antenna‚1 x TUF Gaming sticker‚Support Disk‚1 x TUF Certification card‚Manual

Keywords: Motherboard‚AM4‚A520‚DDR4‚Wi-Fi‚Bluetooth

This product was last updated on Wednesday 17 August, 2022.
