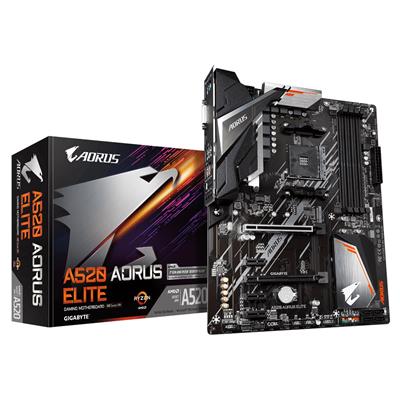

Aorus A520 AORUS ELITE (Socket AM4/A520/DDR4/S-ATA 600/ATX)
[MB119280]

£69.64 (inc VAT) / £58.03 (exc VAT)





Product Numbers
 Part Code: A520 AORUS ELITE
 EAN Number: 4719331809812
Stock Status

In stock
Currently 17 available in stock.
We have more stock arriving:
Delivery Price
 Add to Cart for Instant Delivery Pricing
Quantity Price Break Discounts
 5 - 9 units   £57.88 exc vat
 10 - 19 units   £57.74 exc vat
 20 - 49 units   £57.59 exc vat
 50 - 99 units   £57.45 exc vat
 100 or more units   * Negotiable *
Discounts Are Applied During Checkout
Share Content

Bookmark and Share

Product Title: Aorus A520 AORUS ELITE (Socket AM4/A520/DDR4/S-ATA 600/ATX)

KSN SKU Code: MB119280

Manufacturers Part Code: A520 AORUS ELITE

Product Name: Aorus A520 AORUS ELITE (Socket AM4/A520/DDR4/S-ATA 600/ATX)

Web Address: www.gigabyte.com

Model Number: A520 AORUS ELITE

EAN: 4719331809812

UPC: 889523023617

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD A520

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/A520-AORUS-ELITE-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 2

PCI Express 3.0 x1: 3

S-ATA III Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1

On-Board LAN: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio: Realtek ALC1200 codec‚High Definition Audio‚2/4/5.1/7.1-channel‚Support for S/PDIF Out

On-Board Video: AMD processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 3

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers

Internal Button(s): 1 x Q-Flash Plus

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 8cm

Gross Weight: 3.12Kg

Special Features: Supports 3rd Gen AMD Ryzen Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs.‚Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector.‚AMP-UP Audio with ALC1200 and High-End Audio Capacitors.‚GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.‚HDMI, DVI-D Ports for Multiple Display.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Pre-installed IO Shield for Easy and Quick Installation.

Package Contents: A520 AORUS ELITE Motherboard‚2 x SATA Cables‚Support Disk‚Manual

Keywords: Motherboard‚AM4‚A520‚DDR4‚PCIe‚M.2‚HDMI

This product was last updated on Friday 15 October, 2021.
