Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1EF0-M1EAY0
EAN Number:
|
Stock Status |
| We have more stock arriving: 28/04/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£116.83 exc vat |
| 10 - 19 units |
£116.54 exc vat |
| 20 - 49 units |
£116.24 exc vat |
| 50 - 99 units |
£115.95 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

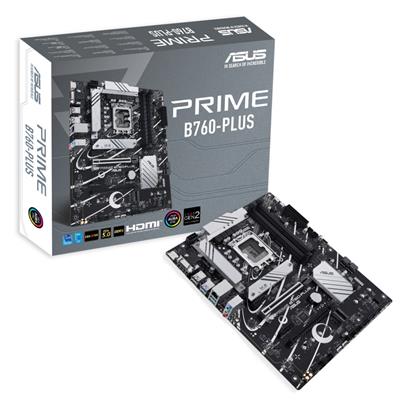

Product Title: ASUS PRIME B760-PLUS (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB123607
Manufacturers Part Code: 90MB1EF0-M1EAY0
Product Name: ASUS PRIME B760-PLUS (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PRIME B760-PLUS
EAN: 4711387102985
UPC: 197105102989
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/helpdesk_qvl_cpu/?model2Name=PRIME-B760-PLUS
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 3 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 1
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Vertical M.2 slot (Key E)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Aura RGB header
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 26.5cm
Package Length: 33cm
Package Height: 5.2cm
Gross Weight: 1.21Kg
Special Features: Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.‚Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support.‚Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚1 x M.2 Rubber Package‚2 x Screw Packages for M.2 SSD‚1 x User guide
Keywords: Motherboard‚1700‚B760‚DDR5
|
