Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1J10-M0EAYC
EAN Number: 4711387797204
|
Stock Status |
Currently 3 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£143.53 exc vat |
| 10 - 19 units |
£143.17 exc vat |
| 20 - 49 units |
£142.81 exc vat |
| 50 - 99 units |
£142.45 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

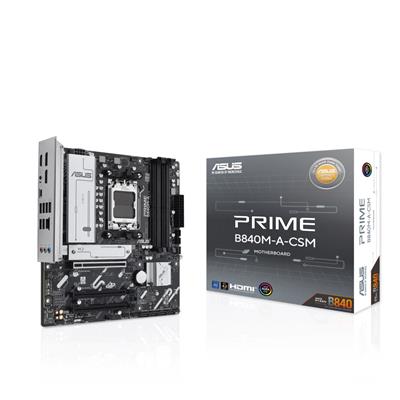

Product Title: ASUS PRIME B840M-A-CSM (AM5//B840/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126174
Manufacturers Part Code: 90MB1J10-M0EAYC
Product Name: ASUS PRIME B840M-A-CSM (AM5//B840/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B840M-A-CSM
EAN: 4711387797204
UPC: 197105797208
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset: AMD B840
CPU Interface: Socket AM5
CPU Support: https://www.asus.com/motherboards-components/motherboards/csm/prime-b840m-a-csm/helpdesk_qvl_cpu?model2Name=PRIME-B840M-A-CSM
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7600 (O.C.)
Max. Memory Support: 192GB
PCI Express 3.0 x16: 2
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 3.0 x4
LAN Speed: 1 x Realtek 2.5Gb Ethernet‚ASUS LANGuard
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 5Gbps Port(s) Type-A: 1
Back USB 10Gbps Port(s) Type-A: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x BIOS FlashBack
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 5Gbps Header(s): 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27.5cm
Package Length: 27.5cm
Package Height: 6.75cm
Net Weight: 0.91Kg
Gross Weight: 1.35Kg
Special Features: ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x M.2 rubber package‚2 x Screw packages for M.2 SSD‚1 x ACC Express Activation Key Card‚1 x Quick start guide
Keywords: Motherboard‚AM5‚B840‚DDR5‚Micro ATX
|
