Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1CS0-M1EAY0
EAN Number: 4711081939320
|
Stock Status |
Currently 28 available in stock.
We have more stock arriving: 28/04/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£237.54 exc vat |
| 10 - 19 units |
£236.94 exc vat |
| 20 - 49 units |
£236.35 exc vat |
| 50 - 99 units |
£235.75 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

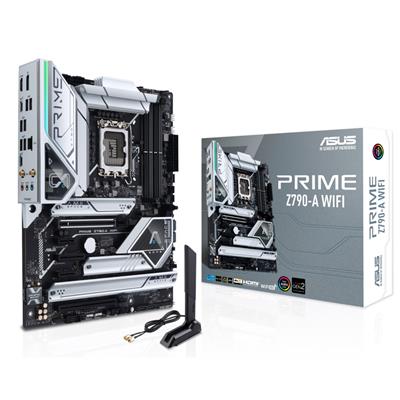

Product Title: ASUS PRIME Z790-A WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122536
Manufacturers Part Code: 90MB1CS0-M1EAY0
Product Name: ASUS PRIME Z790-A WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PRIME Z790-A WIFI
EAN: 4711081939320
UPC: 195553939324
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-A-WIFI/HelpDesk_QVL_CPU/
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 4.0 x4: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 3 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: 1 x Intel 2.5Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 6E
Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5/6GHz frequency band
Bluetooth: v5.3
On-Board Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2: 1
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚1 x Aura RGB Header‚1 x Clear CMOS Header‚1 x CPU Over Voltage Jumper
Internal Button(s): 1 x Power
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 1.92Kg
Special Features: Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors.‚Enhanced power solution: 16+1 DrMOS, ProCool connectors, chokes and durable capacitors for stable power delivery.‚Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4.‚Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) header support, 4 PCIe 4.0 M.2.‚Exclusive AI and Memory technology: AI Cooling II, Two-Way AI Noise-Cancelation, ASUS Enhanced Memory Profile II and ASUS OptiMem II.‚PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot.
Package Contents: Motherboard‚2 x SATA 6Gb/s Cables‚1 x ASUS Wi-Fi Moving Antenna‚1 x Q-connector‚2 x M.2 Rubber Packages‚1 x Screw Package for M.2 SSD‚1 x User Guide
Keywords: Motherboard‚1700‚Z790‚DDR5‚Wi-Fi‚Bluetooth
|
