Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1FZ0-M0EAY0
EAN Number: 4711387402726
|
Stock Status |
Currently 13 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£653.38 exc vat |
| 10 - 19 units |
£651.74 exc vat |
| 20 - 49 units |
£650.11 exc vat |
| 50 - 99 units |
£648.47 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

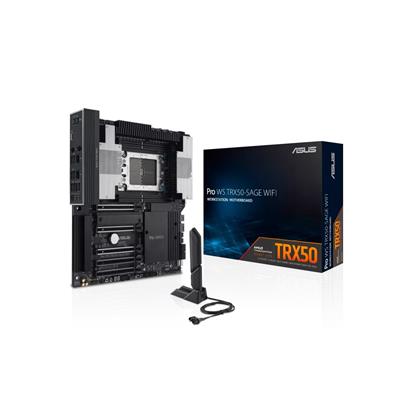

Product Title: ASUS PRO WS TRX50-SAGE WIFI (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/CEB)
KSN SKU Code: MB124599
Manufacturers Part Code: 90MB1FZ0-M0EAY0
Product Name: ASUS PRO WS TRX50-SAGE WIFI (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/CEB)
Web Address: www.asus.com
Model Number: PRO WS TRX50-SAGE WIFI
EAN: 4711387402726
UPC: 197105402720
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset: AMD TRX50
CPU Interface: Socket sTR5
CPU Support: https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-trx50-sage-wifi/helpdesk_qvl_cpu?model2Name=Pro-WS-TRX50-SAGE-WIFI
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
PCI Express 4.0 x16: 2
PCI Express 5.0 x16: 3
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
SAS Port(s): 1 x SlimSAS
M.2 Socket(s): 2 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Marvell AQtion 10Gb Ethernet‚1 x Intel I226-LM 2.5Gb Ethernet
Wireless NIC: Wi-Fi 7
Wireless Technology: 2x2 Wi-Fi 7 (802.11be)‚Supports 2.4/5/6GHz frequency band‚Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate.
Bluetooth: v5.4
On-Board Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
Back USB 2.0 Port(s): 2
Back USB 10Gbps Port(s) Type-A: 6
Back USB 20Gbps Port(s) Type-C: 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 2
8-pin ATX Power: 2
PCIe Power Connector(s): 2 x 8-pin PCIe to CPU power connectors‚1 x 6-pin PCIe Power connector‚1 x 8-pin PCIe Power connector
USB 2.0 Header(s): 2
USB 5Gbps Header(s): 1
USB 20Gbps Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x BMC header‚1 x USB4 header‚1 x Thermal Sensor header
Internal Button(s): 1 x FlexKey button‚1 x Start button‚1 x Safe boot button‚1 x ReTry button
Form Factor: CEB
Product Width: 280mm
Product Length: 305mm
Package Width: 31.5cm
Package Length: 37.5cm
Package Height: 10cm
Gross Weight: 3.81Kg
Special Features: AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.‚CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC).‚Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.‚Ultrafast connectivity: three PCIe 5.0 x16 slots, 10 Gb and 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.‚Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Centre Express software for real-time monitoring and management.‚Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x CPU 8-pin to PCIe 8-pin adapter cable package‚1 x Thermistor cable pack‚1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas‚1 x M.2 Q-Latch package(2 in 1)‚2 x M.2 Rubber Packages‚1 x Q-connectorDocumentation‚1 x ACC Express Activation Key Card‚1 x QSG
Keywords: Motherboard‚sTR5‚Threadripper‚TRX50‚CEB
|
