Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1DZ0-M0EAY0
EAN Number: 4711387006177
|
Stock Status |
| We have more stock arriving: 15/12/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£398.98 exc vat |
| 10 - 19 units |
£397.98 exc vat |
| 20 - 49 units |
£396.98 exc vat |
| 50 - 99 units |
£395.98 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

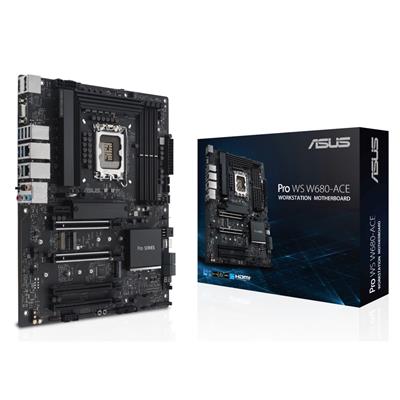

Product Title: ASUS PRO WS W680-ACE (Socket 1700/W680/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB125182
Manufacturers Part Code: 90MB1DZ0-M0EAY0
Product Name: ASUS PRO WS W680-ACE (Socket 1700/W680/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PRO WS W680-ACE
EAN: 4711387006177
UPC: 197105006171
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel W680
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-w680-ace/helpdesk_knowledge?model2Name=Pro-WS-W680-ACE
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
Max. Memory Support: 192GB
PCI Express 3.0 x16: 2
PCI Express 5.0 x16: 2
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
SAS Port(s): 1 x Slim
M.2 Socket(s): 3 x PCIe Gen 4.0 x4
LAN Speed: 2 x Intel 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 2
Back Audio Jack(s): 5
Back Button(s): 1 x BIOS Flashback
24-pin ATX Power: 1
8-pin ATX Power: 1
4-pin ATX Power: 1
PCIe Power Connector(s): 1 x 6-pin
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Thunderbolt Header(s): 1
Parallel Port Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x T-sensor‚1 x BMC Header
Internal Button(s): 1 x Start‚1 x Flexkey
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 1.62Kg
Special Features: Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.‚Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery.‚Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header.‚Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4.‚Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Centre Express.‚Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x Q-connector‚1 x M.2 Rubber Packages‚2 x Screw package for M.2 SSD‚1 x Screw package for M.2 Key E‚1 x IO Shield‚1 x User guide‚1 x ACC Express Activation Key Card
Keywords: Workstation‚Motherboard‚W680‚1700
|
