Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1FY0-M1EAY0
EAN Number: 4711387275962
|
Stock Status |
Currently 3 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£166.92 exc vat |
| 10 - 19 units |
£166.5 exc vat |
| 20 - 49 units |
£166.08 exc vat |
| 50 - 99 units |
£165.67 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

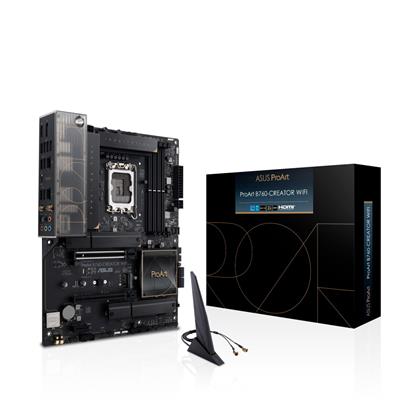

Product Title: ASUS ProArt B760-CREATOR WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB124353
Manufacturers Part Code: 90MB1FY0-M1EAY0
Product Name: ASUS ProArt B760-CREATOR WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PROART B760-CREATOR WIFI
EAN: 4711387275962
UPC: 197105275966
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-wifi/helpdesk_qvl_cpu/?model2Name=ProArt-B760-CREATOR-WIFI
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
Max. Memory Support: 192GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 3.0 x4‚2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet‚1 x Intel 1Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 6
Wireless Technology: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5GHz frequency band
Bluetooth: v5.2
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-C Gen 1: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 2
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 1
6-pin ATX Power: 1
4-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x AURA RGB header‚1 x Thermal Sensor header
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 1.93Kg
Special Features: ASUS 5X PROTECTION III‚ASUS Q-Design‚ASUS Thermal Solution‚ASUS EZ DIY‚AURA Sync
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚2 x M.2 Rubber packages‚1 x ProArt ruler‚1 x Q-connector‚1 x ACC Express Activation Key Card‚1 x User guide
Keywords: Motherboard‚1700‚B760‚DDR5‚WiFi‚Bluetooth
|
