Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1BM0-M0EAY0
EAN Number: 4711081897323
|
Stock Status |
Currently 41 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£315.09 exc vat |
| 10 - 19 units |
£314.3 exc vat |
| 20 - 49 units |
£313.51 exc vat |
| 50 - 99 units |
£312.72 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

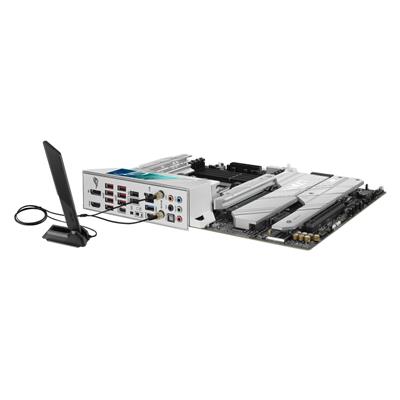

Product Title: ASUS ROG STRIX X670E-A GAMING WIFI (Socket AM5/X670/DDR5/S-ATA 600/Extended ATX)
KSN SKU Code: MB122335
Manufacturers Part Code: 90MB1BM0-M0EAY0
Product Name: ASUS ROG STRIX X670E-A GAMING WIFI (Socket AM5/X670/DDR5/S-ATA 600/Extended ATX)
Web Address: www.asus.com
Model Number: ROG STRIX X670E-A GAMING WIFI
EAN: 4711081897323
UPC: 195553897327
Package Type: Retail
Warranty: 3 Years
BIOS: 2 x 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: AMD X670
CPU Interface: Socket AM5
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6400 (O.C.)
Max. Memory Support: 128GB
PCI Express 5.0 x16: 2
PCI Express 4.0 x4: 1
S-ATA 6Gb/s Port(s): 6
RAID: Raid 0/1/10
M.2 Socket(s): 4 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Intel 2.5Gb Ethernet‚1 x Marvell AQtion 10Gb Ethernet
Wireless NIC: Wi-Fi 6E
Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5/6GHz frequency band
Bluetooth: v5.3
On-Board Audio: SupremeFX Shielding Technology‚ESS ES9218 QUAD DAC‚LED-illuminated audio jacks‚Rear optical S/PDIF out port‚Premium audio capacitors‚Audio cover
On-Board Video: Processor with integrated graphics is required
Back USB 3.2 Port(s) Type-A Gen 2: 8
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back Thunderbolt 4 Port(s): 2
Back LAN Port(s): 2
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
PCIe Power Connector(s): 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
USB 3.2 Header(s) Gen 2x2: 1
Internal Other Port(s): 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers‚1 x Addressable Gen 2 header1 x Aura RGB header‚1 x Front Panel Audio header (AAFP)‚1 x LN2 Mode jumper ‚1 x Osc sence header‚12 x ProbeIt Measurement Points‚1 x RSVD switch‚1 x RSVD header‚1 x 10-1 pin System Panel header‚1 x Thermal Sensor header
Internal Button(s): 1 x Alteration Mode Switch‚1 x BIOS Switch button‚2 x BCLK button‚1 x FlexKey button‚1 x ReTry button‚1 x Safe Boot button‚1 x Slow Mode switch‚1 x Start button‚1 x V_Latch switch
Form Factor: Extended ATX
Product Width: 277mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 2.43Kg
Special Features: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors.‚Intelligent Control: ASUS-exclusive tools including Fan Xpert 4 with AI Cooling II, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration.‚Robust Power Solution: 20 + 2 teamed power stages rated for 110 Amps, MicroFine alloy chokes, premium metallic capacitors, and ProCool II power connectors.‚Optimized Thermal Design: Large VRM heatsinks plus integrated aluminium I/O cover, high-conductivity thermal pad, five M.2 heatsinks, dual M.2 with embedded backplates, and the ROG Water-Cooling Zone.‚High-Performance Networking: Onboard WiFi 6E, Marvell AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard.‚Ultra-fast Connectivity: PCIe 5.0, ROG Gen Z.2 card, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB4 ports.‚Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with?ESS ES9218PQ DAC for ultra-low distortion.‚Unmatched Personalization: AniMe Matrix LED display, 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.‚DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, ROG True Voltician, BIOS?FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, and ROG graphics card holder.‚Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard.
Package Contents: Motherboard‚1 x 1-to-3 ARGB splitter cable‚1 x 1-to-2 ARGB splitter cable‚2 x 1-to-4 fan splitter cable‚1 x RGB extension cable‚3 x ROG weave SATA 6G cables pack‚1 x 3-in-1 Thermistor cables pack‚1 x ROG Fan Controller‚1 x Fan EXT PWR cable‚1 x ARGB input cable ‚1 x USB input cable ‚1 x ROG Fan Controller 3M Mounting tape package‚1 x Fan Controller manual‚1 x ROG GEN-Z.2 with heatsink‚1 x M.2 pad package for ROG GEN-Z.2‚2 x M.2 screw package for ROG GEN-Z.2‚1 x PCIe 5.0 M.2 Card with heatsink‚1 x M.2 screw package for ROG PCIe 5.0 M.2 Card ‚1 x ROG True Voltician‚4 x cables for ROG True Voltician‚1 x Thermal pad for M.2‚1 x ASUS Wi-Fi moving antennas ‚1 x Rubber Package for M.2 backplate‚1 x Q-connector‚2 x M.2 Q-Latch packages for M.2 backplate‚1 x ROG Graphics card holder‚1 x ROG key chain‚1 x ROG logo plate sticker‚1 x ROG screwdriver‚1 x ROG stickers‚1 x ROG thank you card‚1 x USB drive with utilities and drivers ‚1 x User guide
Keywords: Motherboard‚AM5‚X670‚DDR5‚E-ATX
|
