Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1CM0-M0EAY0
EAN Number: 4711081947493
|
Stock Status |
Currently 24 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£337.51 exc vat |
| 10 - 19 units |
£336.67 exc vat |
| 20 - 49 units |
£335.82 exc vat |
| 50 - 99 units |
£334.98 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

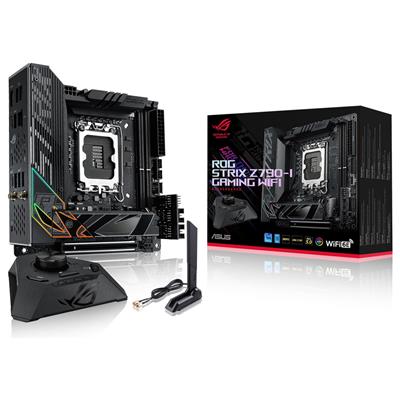

Product Title: ASUS ROG STRIX Z790-I GAMING WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/Mini ITX)
KSN SKU Code: MB122531
Manufacturers Part Code: 90MB1CM0-M0EAY0
Product Name: ASUS ROG STRIX Z790-I GAMING WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/Mini ITX)
Web Address: www.asus.com
Model Number: ROG STRIX Z790-I GAMING WIFI
EAN: 4711081947493
UPC: 195553947497
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/helpdesk_qvl_cpu/
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 7600+ (O.C.)
Max. Memory Support: 64GB
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 2
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Intel 2.5Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 6E
Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5/6GHz frequency band
Bluetooth: v5.3
On-Board Audio: ROG High Definition Audio CODEC ALC4050
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 1
Back USB 3.2 Port(s) Type-A Gen 2: 3
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back Thunderbolt 4 Port(s): 2
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Internal Other Port(s): 1 x Addressable Gen 2 Header‚1 x Aura RGB Header‚1 x Thermal Sensor Header‚2 x USB Type-C Connectors to Install ROG‚FPS-II card‚1 x CPU Over Voltage Jumper‚1 x Thermal Sensor Header‚1 x Alternative PCIe Mode Switch
Form Factor: Mini ITX
Product Width: 170mm
Product Length: 170mm
Package Width: 22.5cm
Package Length: 28cm
Package Height: 10.6cm
Gross Weight: 1.76Kg
Special Features: Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.‚SFF Innovations: ROG Strix Hive moves OC controls and connectivity to the desktop while allowing for a larger audio solution, and the ROG FPS-II Card vertically mounts USB and SATA ports for a better building experience.‚Robust Power Solution: 10 + 1 power solution rated for 105A per stage with ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.‚Optimized VRM Thermals: Thick heatsinks with integrated I/O cover high-conductivity thermal pads, and connected with an L-shaped heatpipe.‚Multi-Layer M.2 Stack: Both a PCIe5.0 M.2 slot and a PCIe 4.0 M.2 are sandwiched between thick heatsinks in a space-saving and thermally-efficient array.‚Abundant Connectivity: Two Thunderbolt 4 ports, USB 3.2 Gen 2x2 Type-C rear I/O port and front-panel connector, four additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, and HDMI 2.1.‚High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.‚Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance.‚Immersive Gaming Audio: ALC4050 with ESS SABRE 9260Q DAC, along with DTS Sound Unbound and Sonic Studio III.‚Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 headers.‚DIY Friendly Design: AI Overclocking button, M.2 Q-Latch, Pre-mounted I/O shield, FlexKey button, BIOS FlashBack button, and Clear CMOS button.‚Renowned Software: Bundled 60-day AIDA64 Extreme free trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.
Package Contents: Motherboard‚2 x SATA 6Gb/s Cables ‚1 x ROG USB2.0 Splitter Cable‚1 x Panel Cable‚1 x ROG FPS-II Card‚1 x ROG STRIX HIVE‚1 x USB Type-C Power Connection Cable‚1 x Thermal Pad for M.2‚1 x ASUS Wi-Fi Moving Antennas ‚1 x Cable Ties Pack‚1 x Rubber Package(s) for M.2‚1 x Q-Latch package(s) for M.2‚1 x ROG Key Chain‚1 x ROG Strix Stickers‚1 x ROG Strix Thank You Card‚1 x User Guide
Keywords: Motherboard‚1700‚Z790‚DDR5‚M-ITX‚Mini ITX‚Wi-Fi‚Bluetooth
|
