Condition |
Brand New
|
Product Numbers |
Part Code: 90MB19Y0-M0EAY0
EAN Number: 4711081305705
|
Stock Status |
Currently 13 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£109.29 exc vat |
| 10 - 19 units |
£109.01 exc vat |
| 20 - 49 units |
£108.74 exc vat |
| 50 - 99 units |
£108.46 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

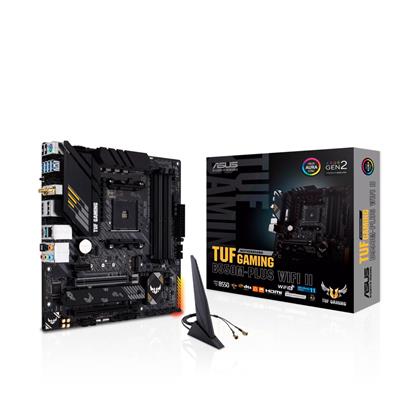

Product Title: ASUS TUF GAMING B550M-PLUS WIFI II (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB122169
Manufacturers Part Code: 90MB19Y0-M0EAY0
Product Name: ASUS TUF GAMING B550M-PLUS WIFI II (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address: www.asus.com
Model Number: TUF GAMING B550M-PLUS WIFI II
EAN: 4711081305705
UPC: 195553305709
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: B550
CPU Interface: Socket AM4
CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-PLUS-WIFI-II/HelpDesk_CPU/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4866 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 1
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x SATA/PCIe 4.0 x4‚1 x SATA/PCIe 3.0 x4
LAN Speed: Realtek 2.5Gb
Wireless NIC: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth: v5.2
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x BIOS FlashBack button
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.1 Header(s) Gen 2: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Addressable Gen 2 header‚2 x AURA RGB headers
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27.5cm
Package Length: 28cm
Package Height: 7cm
Gross Weight: 1.44Kg
Special Features: AMD AM4 socket: Ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.‚Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability.‚Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility.‚Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support.‚Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard.‚Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x I/O Shield‚1 x M.2 Rubber package‚1 x M.2 SSD screw package‚1 x TUF Gaming sticker‚1 x Support DVD‚1 x TUF Certification card‚1 x User guide
Keywords: Motherboard‚AM4‚B550‚DDR4‚WiFi‚Bluetooth
|
