Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1D80-M1EAY0
EAN Number: 4711387014509
|
Stock Status |
Currently 104 available in stock.
We have more stock arriving: 22/04/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£228.76 exc vat |
| 10 - 19 units |
£228.18 exc vat |
| 20 - 49 units |
£227.61 exc vat |
| 50 - 99 units |
£227.04 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

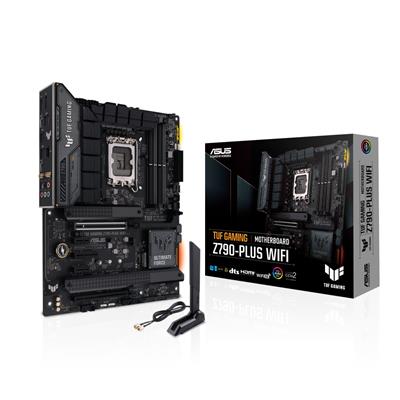

Product Title: ASUS TUF GAMING Z790-PLUS WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122533
Manufacturers Part Code: 90MB1D80-M1EAY0
Product Name: ASUS TUF GAMING Z790-PLUS WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: TUF GAMING Z790-PLUS WIFI
EAN: 4711387014509
UPC: 197105014503
Package Type: Retail
Warranty: 3 Years
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-plus-wifi/helpdesk_qvl_cpu/
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 4.0 x4: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 3 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: 1 x Intel 2.5Gb Ethernet
Wireless NIC: Wi-Fi 6
Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5/6GHz frequency band
Bluetooth: v5.3
On-Board Audio: Realtek S1200A 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2: 1
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚1 x Aura RGB Header
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 35.5cm
Package Height: 7cm
Gross Weight: 2.00Kg
Special Features: 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks.‚USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 2 Type-C header.‚PCIe 5.0 for graphics cards.‚PCIe Q-Release.‚7200+ MT/s, AEMP II.‚WiFi 6E.‚2.5 Gb Ethernet‚AI Cooling II.‚Two-Way AI Noise Cancelation.
Package Contents: 1 x TUF GAMING Z790-PLUS WIFI motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x TUF GAMING sticker‚2 x M.2 Rubber Packages‚1 x Screw package for M.2 SSD‚1 x TUF Certification card‚1 x User guide
Keywords: Motherboard‚1700‚Z790‚DDR5‚PCIe‚WiFi‚Bluetooth‚M-ATX‚Micro ATX
|
