Condition |
Brand New
|
Product Numbers |
Part Code: B650 GAMING X AX V2
EAN Number: 4719331860073
|
Stock Status |
| We have more stock arriving: 20/10/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£122.53 exc vat |
| 10 - 19 units |
£122.23 exc vat |
| 20 - 49 units |
£121.92 exc vat |
| 50 - 99 units |
£121.61 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

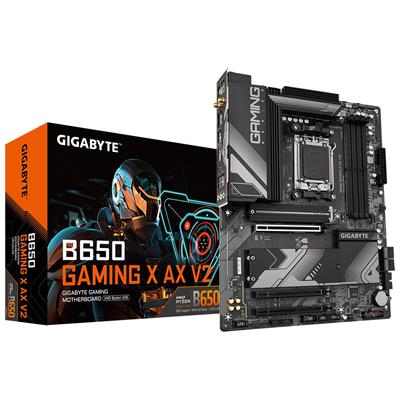

Product Title: Gigabyte B650 GAMING X AX V2 (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB124643
Manufacturers Part Code: B650 GAMING X AX V2
Product Name: Gigabyte B650 GAMING X AX V2 (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.gigabyte.com
Model Number: B650 GAMING X AX V2
EAN: 4719331860073
UPC: 889523041376
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 192GB
PCI Express 3.0 x16: 2
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 3
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
4-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable LED strip headers‚2 x RGB LED strip headers‚1 x CPU cooler LED strip/RGB LED strip header
Internal Button(s): 1 x Reset
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 1.94Kg
Special Features: AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors.‚Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚SuperSpeed Storage: 1 x PCIe 5.0 x4 + 2 x PCIe 4.0 x4 M.2 Connectors.‚Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 M.2 SSD Performance.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax.‚Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚Manual‚2 x Antennas‚2 x SATA cables‚M.2 screw
Keywords: Motherboard‚AM5‚B650‚DDR5‚WiFi‚Bluetooth
|
