Condition |
Brand New
|
Product Numbers |
Part Code: B860M DS3H WIFI6E
EAN Number: 4719331866815
|
Stock Status |
Currently 21 available in stock.
We have more stock arriving: 20/10/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£119.31 exc vat |
| 10 - 19 units |
£119.01 exc vat |
| 20 - 49 units |
£118.71 exc vat |
| 50 - 99 units |
£118.41 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

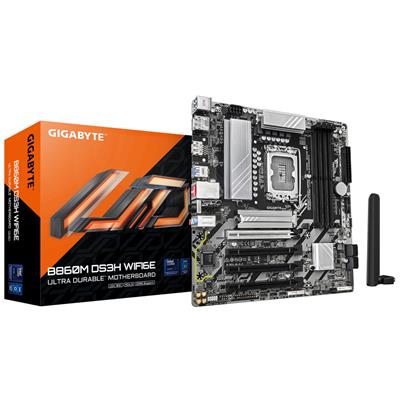

Product Title: Gigabyte B860M DS3H WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126195
Manufacturers Part Code: B860M DS3H WIFI6E
Product Name: Gigabyte B860M DS3H WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B860M DS3H WIFI6E
EAN: 4719331866815
UPC: 829523046865
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B860 Express
CPU Interface: Socket 1851
CPU Support: https://www.gigabyte.com/uk/Motherboard/B860M-DS3H-WIFI6E/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 9066 (O.C.)
Max. Memory Support: 256GB
PCI Express 4.0 x16: 3
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 3.0 Port(s): 3
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x Antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header
Internal Button(s): 1 x Q-Flash Plus
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 27cm
Package Height: 7cm
Gross Weight: 1.12Kg
Special Features: Supports Intel Core Ultra processors.‚Hybrid 5+1+2 phases VRM solution.‚D5 Bionic Corsa for Infinite Memory Performance.‚AI Perfdrive: Provides optimal and customized BIOS preset profile for users.‚WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.‚New Power Monitor in HWinfo for real-time monitoring on CPU power phases.‚Ultra-Fast Storage: 2 x M.2 slots, including 1x PCIe 5.0 x4.‚M.2 Thermal Guard: To Ensure M.2 SSD Performance.‚Fast Networking: 2.5GbE LAN and Wi-Fi 6E 802.11ax.‚Extended Connectivity: 2 x DisplayPort, HDMI.
Package Contents: Motherboard‚Manual‚Quick Installation Guide‚1 x Antenna‚2 x SATA cables‚M.2 screws‚One pack of M.2 thick/thin rubber pads
Keywords: Motherboard‚1851‚B860‚Wi-Fi 6E‚Micro ATX
|
