Condition |
Brand New
|
Product Numbers |
Part Code: TRX50 AERO D
EAN Number: 4719331859480
|
Stock Status |
Currently 27 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£555.79 exc vat |
| 10 - 19 units |
£554.39 exc vat |
| 20 - 49 units |
£553 exc vat |
| 50 - 99 units |
£551.61 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

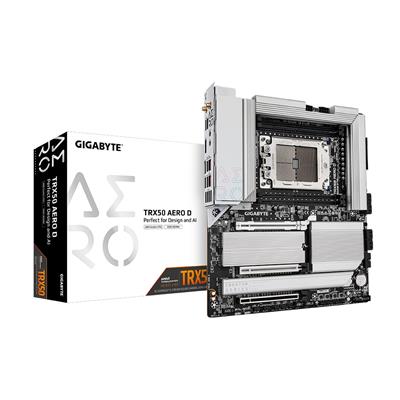

Product Title: Gigabyte TRX50 AERO D (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/Extended ATX)
KSN SKU Code: MB124374
Manufacturers Part Code: TRX50 AERO D
Product Name: Gigabyte TRX50 AERO D (Socket sTR5/TRX50/DDR5/S-ATA 6Gb/s/Extended ATX)
Web Address: www.gigabyte.com
Model Number: TRX50 AERO D
EAN: 4719331859480
UPC: 889523040560
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD TRX50
CPU Interface: Socket sTR5
CPU Support: https://www.gigabyte.com/Motherboard/TRX50-AERO-D/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7800 (O.C.)
Max. Memory Support: 1TB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 2
S-ATA 6Gb/s Port(s): 8
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚3 x PCIe Gen 5.0 x4
On-Board LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)‚Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless NIC: Wi-Fi 7
Wireless Technology: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands‚Support for 11be 320MHz wireless standard
Bluetooth: v5.3
On-Board Audio: Realtek ALC4080 CODEC (rear panel audio)‚Support for DTS:X Ultra‚High Definition Audio‚2-channel‚Realtek ALC897 CODEC (front panel audio)
On-Board Video: Processor with integrated graphics is required
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 4
Back DisplayPort(s): 1
Back LAN Port(s): 2
Back Audio Jack(s): 2
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header‚1 x Noise detection header‚2 x Temperature sensor headers
Internal Button(s): 1 x Power‚1 x Clear CMOS‚1 x Reset
Form Factor: Extended ATX
Product Width: 264mm
Product Length: 305mm
Package Width: 29.5cm
Package Length: 35.5cm
Package Height: 8cm
Gross Weight: 3.06Kg
Special Features: Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors.‚Breakthrough Performance: 16+8+4 Phases Digital VRM Solution.‚Quad Channel DDR5: 4 x SMD R-DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚Reinforced Overall Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.‚Ultimate Scalability: 3 x PCIe x16 slots for Multi-GPU and 4 x PCIe x4 M.2 slots.‚Next-gen Connectivity: Dual USB4 Type-C ports.‚Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7.‚PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.‚EZ-Latch Click: M.2 heatsinks with screwless design.‚EZ-Latch Plus: M.2 slots with quick release design.‚Hi-Fi Audio with DTS:X Ultra: ALC4080+ALC897 CODEC.‚UC BIOS: User-Centred intuitive UX with Quick Access function.
Package Contents: Motherboard
Keywords: Motherboard‚sTR5‚TRX50‚DDR5‚WiFi‚Bluetooth‚E-ATX‚Extended ATX
Back USB4 Port(s) Type-C: 2
|
