Condition |
Brand New
|
Product Numbers |
Part Code: B860M GAMING PLUS WIFI
EAN Number: 4711377286558
|
Stock Status |
Currently 39 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£147.24 exc vat |
| 10 - 19 units |
£146.87 exc vat |
| 20 - 49 units |
£146.5 exc vat |
| 50 - 99 units |
£146.13 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

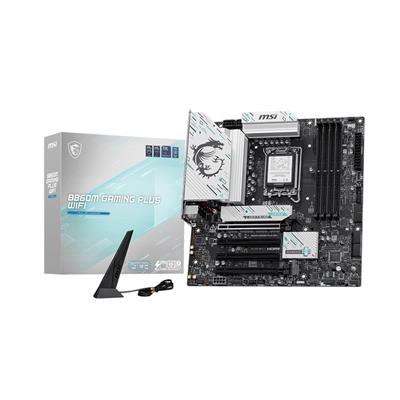

Product Title: MSI B860M GAMING PLUS WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126150
Manufacturers Part Code: B860M GAMING PLUS WIFI
Product Name: MSI B860M GAMING PLUS WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: uk.msi.com
Model Number: B860M GAMING PLUS WIFI
EAN: 4711377286558
UPC: 824142392935
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B860
CPU Interface: Socket 1851
CPU Support: https://www.msi.com/Motherboard/B860M-GAMING-PLUS-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8600 (O.C.)
Max. Memory Support: 256GB
PCI Express 4.0 x16: 3
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x2
LAN Speed: Intel Killer E5000 5Gbps LAN
Wireless NIC: Intel Killer BE1750x Wi-Fi 7
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps‚Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth: v5.4
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 5Gbps Port(s) Type-A: 2
Back USB 10Gbps Port(s) Type-A: 1
Back Thunderbolt 4 Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x Clear CMOS
Internal I/O Connectors: Wi-Fi / Bluetooth
24-pin ATX Power: 1
8-pin ATX Power: 2
PCIe Power Connector(s): 1 x 8-pin
USB 2.0 Header(s): 4
USB 5Gbps Header(s): 4
USB 10Gbps Header(s): 1
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x EZ Conn-header‚1 x Tuning Controller Connector‚2 x Addressable V2 RGB LED Connector‚1 x RGB LED Connector‚4 x EZ Debug LED
Package Width: 27.3cm
Package Length: 28.3cm
Package Height: 7cm
Gross Weight: 1.45Kg
Special Features: Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.‚Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC).‚Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN and Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.‚Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB.‚Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.‚Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C.‚EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.‚Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚EZ Wi-Fi Antenna‚1 to 2 EZ Conn-Cable‚SATA Cable‚EZ M.2 Clip II‚EZ M.2 Clip II Remover‚2 x M.2 Screw and Standoff Set
Keywords: Motherboard‚1851‚B860‚Killer‚Micro ATX
Back USB 5Gbps Port(s) Type-C: 1
|
