Condition |
Brand New
|
Product Numbers |
Part Code: MPG B760I EDGE WIFI
EAN Number: 4711377069632
|
Stock Status |
Currently 13 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£164.12 exc vat |
| 10 - 19 units |
£163.71 exc vat |
| 20 - 49 units |
£163.3 exc vat |
| 50 - 99 units |
£162.88 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

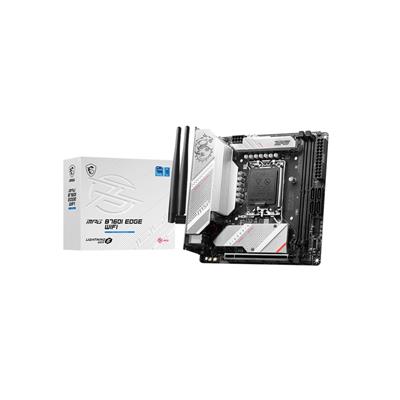

Product Title: MSI MPG B760I EDGE WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini ITX)
KSN SKU Code: MB123294
Manufacturers Part Code: MPG B760I EDGE WIFI
Product Name: MSI MPG B760I EDGE WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini ITX)
Web Address: uk.msi.com
Model Number: MPG B760I EDGE WIFI
EAN: 4711377069632
UPC: 824142315545
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 96GB
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: Realtek RTL8125B 2.5Gbps LAN
Wireless NIC: Wi-Fi 6E
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps‚Supports 802.11 a/b/g/n/ac/ax
Bluetooth: v5.3
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel USB High Performance Audio
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): Wi-Fi / Bluetooth
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Addressable V2 RGB LED connector‚1 x RGB LED connector‚4 x EZ Debug LED
Form Factor: Mini ITX
Product Width: 170mm
Product Length: 170mm
Package Width: 19.3cm
Package Length: 23cm
Package Height: 8.2cm
Gross Weight: 1.00Kg
Special Features: Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket.‚Supports DDR5 Memory, up to 7200+(OC) MHz.‚Lightning-Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2.‚Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost.‚Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.‚2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.‚High Quality PCB: 8-layer PCB made by server grade level material.‚Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Package Contents: Motherboard‚Quick Installation Guide‚M,2 Screw Package‚Wi-Fi Antenna‚Cable Stickers‚1 x SATA Cable‚Rainbow RGB LED Extension Cable
Keywords: Motherboard‚1700‚B760‚DDR5‚WiFi‚Bluetooth
|
