Condition |
Brand New
|
Product Numbers |
Part Code: MPG B850 EDGE TI WIFI
EAN Number: 4711377290616
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£225.96 exc vat |
| 10 - 19 units |
£225.4 exc vat |
| 20 - 49 units |
£224.83 exc vat |
| 50 - 99 units |
£224.26 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

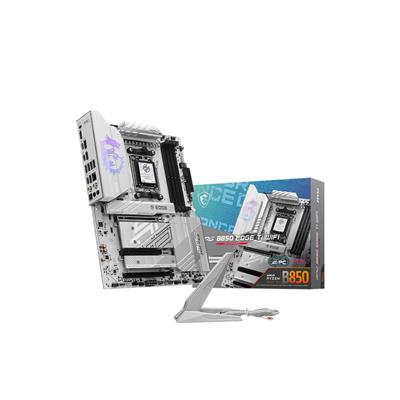

Product Title: MSI MPG B850 EDGE TI WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB126155
Manufacturers Part Code: MPG B850 EDGE TI WIFI
Product Name: MSI MPG B850 EDGE TI WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)
Web Address: uk.msi.com
Model Number: MPG B850 EDGE TI WIFI
EAN: 4711377290616
UPC: 824142395349
Package Type: Retail
Warranty: 3 Years
Chipset: AMD B850
CPU Interface: Socket AM5
CPU Support: https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI/support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8400 (O.C.)
Max. Memory Support: 256GB
PCI Express 3.0 x16: 1
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 2 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x2
LAN Speed: 1 x Realtek 8126 5G LAN
Wireless NIC: Wi-Fi 7
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps‚Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth: v5.4
On-Board Audio: Realtek ALC4080 Codec‚7.1-Channel USB High-Performance Audio‚Supports up to 32-Bit/384 kHz playback on front panel‚Supports S/PDIF output
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 5Gbps Port(s) Type-A: 1
Back USB 10Gbps Port(s) Type-A: 2
Back USB 10Gbps Port(s) Type-C: 3
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): Wi-Fi / Bluetooth
Back Button(s): 1 x Clear CMOS‚1 x Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 2
PCIe Power Connector(s): 1
USB 2.0 Header(s): 4
USB 5Gbps Header(s): 4
USB 20Gbps Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x EZ Conn-header‚3 x Addressable V2 RGB LED connector (JARGB_V2)‚1 x RGB LED connector(JRGB)‚4 x EZ Debug LED‚1 x EZ Digit Debug LED‚1 x EZ Memory Detection LED
Form Factor: Standard ATX
Product Width: 243.84mm
Product Length: 304.8mm
Package Width: 27cm
Package Length: 34.5cm
Package Height: 7cm
Gross Weight: 2.26Kg
Special Features: Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.‚Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC).‚Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.‚Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.‚EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.‚Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2.‚High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.‚Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚Cable Sticker‚EZ Wi-Fi Antenna‚3 x EZ M.2 Clip II‚EZ M.2 Clip II Remover‚SATA Cable‚ARGB Extension cable‚1 to 3 EZ Conn-Cable‚EZ Front Panel Cable
Keywords: Motherboard‚AM5‚B850‚DDR5‚Wi-Fi 7
|
