Condition |
Brand New
|
Product Numbers |
Part Code: PRO B760-P DDR4 II
EAN Number: 4711377128889
|
Stock Status |
Currently 279 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£109.36 exc vat |
| 10 - 19 units |
£109.08 exc vat |
| 20 - 49 units |
£108.81 exc vat |
| 50 - 99 units |
£108.53 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

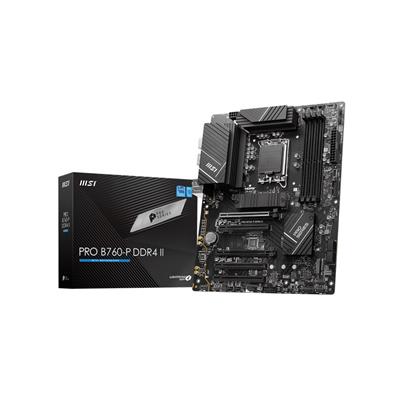

Product Title: MSI PRO B760-P DDR4 II (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB123950
Manufacturers Part Code: PRO B760-P DDR4 II
Product Name: MSI PRO B760-P DDR4 II (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
Web Address: uk.msi.com
Model Number: PRO B760-P DDR4 II
EAN: 4711377128889
UPC: 824142334911
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/PRO-B760-P-DDR4-II/support#cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5333 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 3
PCI Express 4.0 x16: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: Realtek RTL8125BG 2.5G LAN
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio‚Supports S/PDIF output
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
24-pin ATX Power: 1
8-pin ATX Power: 1
4-pin ATX Power: 1
USB 2.0 Header(s): 4
USB 3.2 Header(s) Gen 1: 5
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x TBT connector (JTBT, supports RTD3)‚2 x Addressable V2 RGB LED connector (JARGB_V2)‚2 x RGB LED connector(JRGB)
Form Factor: Standard ATX
Product Width: 243.84mm
Product Length: 304.8mm
Package Width: 27cm
Package Length: 35cm
Package Height: 7cm
Gross Weight: 1.45Kg
Special Features: Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket.‚Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC).‚Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost.‚Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.‚High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.‚Lightning-Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2.‚Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.‚2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚1 x Quick installation guide‚1 x European Union regulatory notice‚1 x SATA 6Gb/s cable‚1 x EZ M.2 Clip package (1 set/pack)‚1 x M.2 screw and standoff package (1 set/pack)‚1 x IO shielding
Keywords: Motherboard‚1700‚B760‚DDR4‚HDMI‚DisplayPort
|
